آلة صنع إطارات الدراجات النارية
>
Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press with 380V/50Hz Power and 220V/380V/Customized Voltage

Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press with 380V/50Hz Power and 220V/380V/Customized Voltage

الاسم التجاري: Beishun
رقم الطراز: 8 "-18"
الـ MOQ: 6 مجموعات
السعر: قابل للتفاوض
تفاصيل التعبئة: 40GP
شروط الدفع: ل / c، / تي تي، ويسترن يونيون
معلومات مفصلة
مكان المنشأ:
تشينغداو
إصدار الشهادات:
ISO/CE
قوة:
380V/50Hz
تكرار:
50 هرتز/60 هرتز
مادة:
فُولاَذ
نوع التدفئة:
كهربائي أو بخار
رمز النظام المنسق:
84778000
المكبس Qty:
1
الجهد االكهربى:
220V/380V/مخصص
نطاق الضغط:
0-200 ميجا باسكال
السماكة الفعالة:
1-4mm
طريقة التسخين:
كهربائي أو بخار
يكتب:
تلقائي تماما
القدرة الإنتاجية:
100-120 قطعة/ساعة
عرض الربط:
160 ملم كحد أقصى
وارنت:
1.5 سنة
سعة:
100-120 إطار في الساعة
القدرة على العرض:
80 مجموعات
إبراز:

Electric Heating Motorcycle Tyre Curing Press,Hydraulic Tire Vulcanizing Press,Four-layer Motorcycle Tire Vulcanizing Machine

,

Hydraulic Tire Vulcanizing Press

,

Four-layer Motorcycle Tire Vulcanizing Machine

وصف المنتج

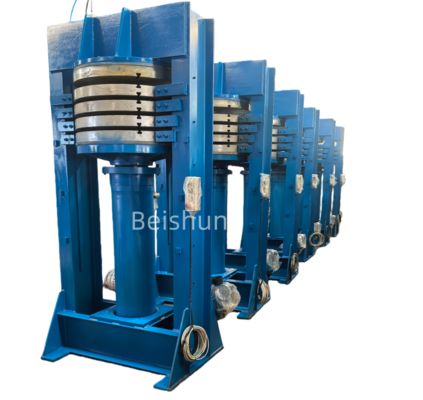

Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press Machine

This specialized equipment is designed for manufacturing and retreading motorcycle tires. The machine transforms soft, uncured rubber "green tires" into durable finished products through precise heat and pressure application in a mold - a process known as vulcanization.

Key Features Explained
  • Motorcycle Tyre Curing Press: Specifically designed for motorcycle tire sizes (8"-18"), using vulcanization to cross-link rubber polymers for durability.
  • Four-Layer Design: Four independent curing stations vertically stacked for space efficiency, allowing simultaneous processing of multiple tires.
  • Hydraulic System: Provides high, controllable clamping force to seal molds and maintain internal pressure during curing.
  • Electric Heating: Embedded heating elements offer precise temperature control (150-180°C) without steam boiler requirements.
  • Semi-Automatic Operation: Combines manual loading/unloading with automated curing cycles for efficiency and consistency.
Technical Specifications
Curing Tire Size 8"-18"
Green Tire Max Height 155-300
Mould Max Diameter Φ 750
Power 15-18KW
Max Distance Between Hou Plate 690
Bladder Pressure (kgf/cm²) 18-20
Workflow Process
  1. Preparation: Clean mold and prepare green tire
  2. Loading: Place tire in bottom mold half
  3. Cycle Start: Initiate automated curing process
  4. Curing: Hydraulic pressure, electric heating, and bladder inflation
  5. Cycle End: Pressure release and mold opening
  6. Unloading: Remove finished tire and trim excess
Product Advantages
  • High productivity with four-layer simultaneous processing
  • Space-efficient vertical design
  • Consistent quality through precise temperature and pressure control
  • Operator-friendly semi-automatic operation
  • Cost-effective balance of automation and manual operation
Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press with 380V/50Hz Power and 220V/380V/Customized Voltage 0 Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press with 380V/50Hz Power and 220V/380V/Customized Voltage 1
